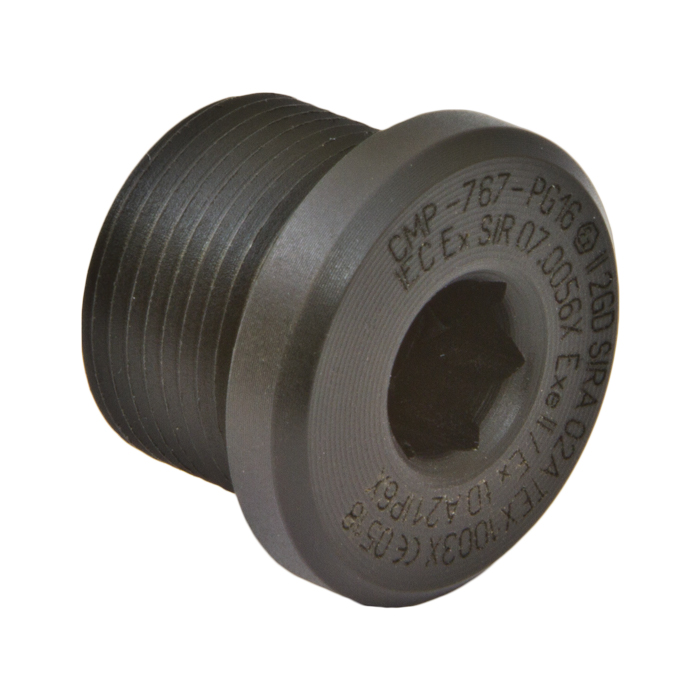

767 Nylon

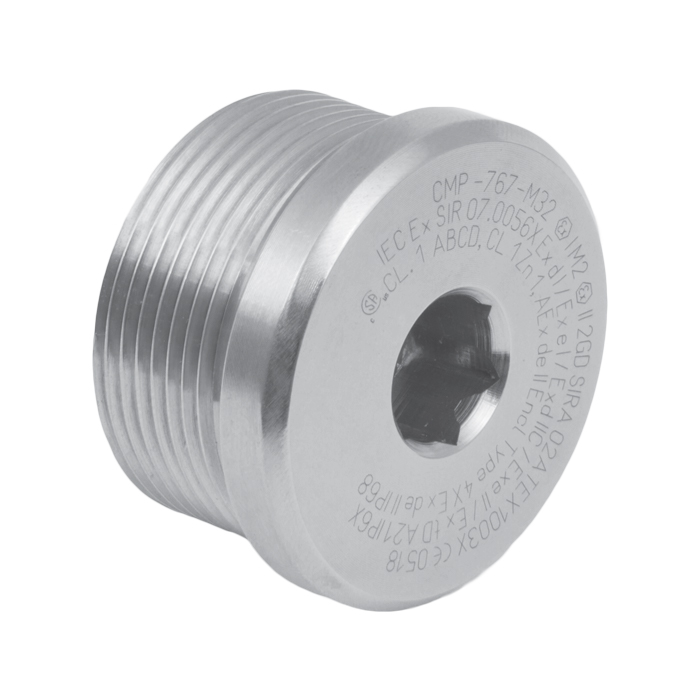

767 Stainless
Dome Head Stopper Plug, Globally Approved, Explosive Atmosphere Cable / Conduit Accessory
• Provides means of blanking unused cable entries
• Temporary or permanent
• General purpose / industrial version available
•设备接口'O'环密封可用
• Nylon Ex e only version available (-20˚C to +60˚C)
•-60˚C至200˚C（金属版本）
• Globally marked, IECEx, ATEX, cCSAus & UL
| 描述 | 艾伦钥匙休息 | 金属 | 非金属 | |||
| Ex d | Ex e | Industrial | Ex e | Industrial | ||
| 747 Recessed Non-Tamper Proof Type 'A' | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 747 Recessed Tamper Proof Type 'B' | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 757个六角形头 | ✗ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 757六角头C / W'O'环封 | ✗ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 767圆顶头 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 767圆顶头c/w 'O' ring seal | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| BS 6121：第1部分：1989，IEC 62444，EN 62444 | |
| IK10到IEC 62262（20焦耳）黄铜和不锈钢 | |
| CML 18ATEX1320X | |
| II 2G EX D IIC GB，EX E IIC GB，II 1D EX TA IIIC DA IM2 Ex d I Mb, Ex e I Mb (II 2G Ex e IIC Gb, II 1D Ex ta IIIC Da only on Nylon version) |
|
| EN 60079-0,1,7, 31 | |
| Iecex CML 18.0177x.,IECEx SIM 15.0002X | |
| 前我mb, Ex e I Mb; Ex d IIC Gb,Ex e IIC Gb, Ex ta IIIC Da | |
| IEC 60079-0,1,7,31 | |
| 1055233 |
|
| I类，A组，B，C和D;IP66,67,68;外壳4x;II类组E，F和G;III类 ex de II，I类，1区，AEX DE II; |
|
| C22.2 No. 0, 0.5, 30,94,CAN/CSA E60079-0, 1, 7, UL50 Edition 11, UL1203 Edition 4, UL.60079-0, 1, 7 |
|
| E214221. | |
| Class I, Groups A,B,C,D; Class II Groups E,F,G; Class III | |
| UL.1203 | |
| TC RU C-GB.ГБ05.B00138 | |
| 14-GA4BO-0248X | |
| P444949 | |
| GYJ13.1143X | |
| TÜV 12.1333X | |
| 03866. | |
| LRS: 01/00173 (E1),DNV: E-13848,ABS: 01-LD234401C/2-PDA | |
| -60°C至+ 200°C（金属），-20°C至+ 60°C（尼龙） | |
| IP66或IP68配有“O”戒指 | |
| Brass, Electroless Nickel Plated Brass, Aluminium, Stainless Steel, Nylon |
** Refer to保持封印有关入口保护评级的更多信息

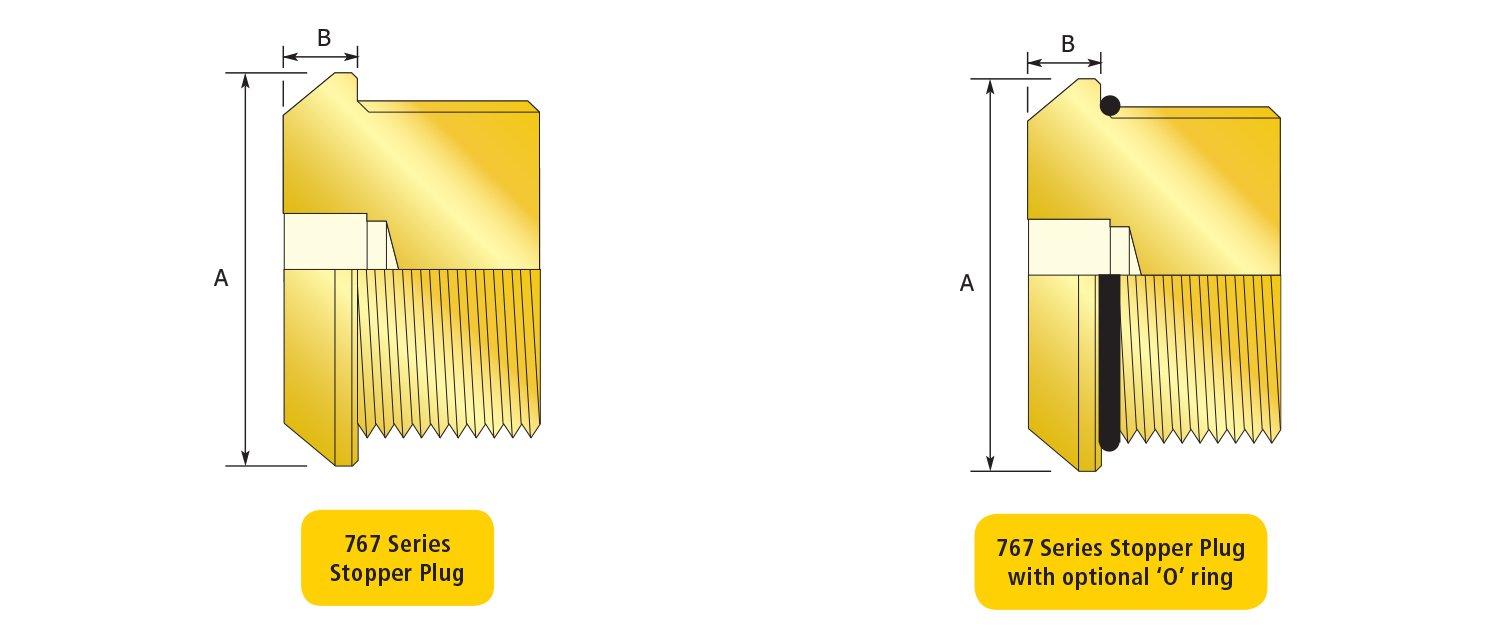

| 订购参考 | 线程尺寸 | Minimum Thread Length | Head Diameter "A" | Protrusion Length "B" | Allen Key Size A/F |
| 767DM1 | M16 X 1.5 | 0.591 | 0.866 | 0.217 | M8 |
| 767DM2 | M20 x 1.5 | 0.591 | 1.063 | 0.217 | M10 |
| 767DM3 | M25 X 1.5 | 0.591 | 1.181 | 0.217 | M10 |
| 767DM4 | M32 x 1.5 | 0.591 | 1.417 | 0.217 | M10 |
| 767DM5 | M40 X 1.5 | 0.591 | 1.811 | 0.217 | M10 |
| 767DM6 | M50 X 1.5 | 0.591 | 2.165 | 0.217 | M10 |
| 767DM7 | M63 X 1.5 | 0.591 | 2.677 | 0.217 | M10 |
| 767DM8 | M75 X 1.5 | 0.591 | 3.150 | 0.217 | M14 |
| 767DM9 | M90 x 2.0 | 0.945 | 3.740 | 0.217 | M14 |
| 767DM10 | M100 x 2.0 | 0.945 | 4.252 | 0.217 | M14 |
| Dimensions are displayed in inches unless otherwise stated | |||||
| 订购参考 | 线程尺寸 | Minimum Thread Length | Head Diameter "A" | Protrusion Length "B" | Allen Key Size A/F |
| 767DM1 | M16 X 1.5 | 15.0 | 22.0 | 5.5 | M8 |
| 767DM2 | M20 x 1.5 | 15.0 | 27.0 | 5.5 | M10 |
| 767DM3 | M25 X 1.5 | 15.0 | 30.0 | 5.5 | M10 |
| 767DM4 | M32 x 1.5 | 15.0 | 36.0 | 5.5 | M10 |
| 767DM5 | M40 X 1.5 | 15.0 | 46.0 | 5.5 | M10 |
| 767DM6 | M50 X 1.5 | 15.0 | 55.0 | 5.5 | M10 |
| 767DM7 | M63 X 1.5 | 15.0 | 68.0 | 5.5 | M10 |
| 767DM8 | M75 X 1.5 | 15.0 | 80.0. | 5.5 | M14 |
| 767DM9 | M90 x 2.0 | 24.0 | 95.0 | 5.5 | M14 |
| 767DM10 | M100 x 2.0 | 24.0 | 108.0 | 5.5 | M14 |
| Dimensions are displayed in millimetres unless otherwise stated | |||||
