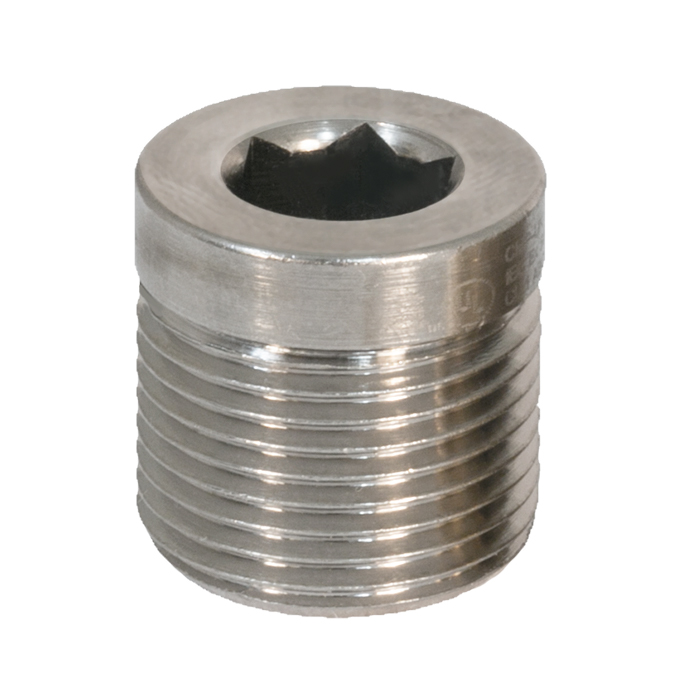

Recessed Stopper Plug, Globally Approved, Explosive Atmosphere Cable / Conduit Accessory
•提供消隐未使用的电缆条目的手段
•临时或永久
• Tamper-proof (Type B) version available
•通用/工业版可用
• Nylon Ex e only version available (-20˚C to +60˚C)
• -60˚C to 200˚C (metallic versions)
•全球标记,IECEX,ATEX,CCSAUS&UL
Description | Allen key recess | Metallic | 没有n-Metallic | |||
EX'D' | 可执行程序' | 产业 | 可执行程序' | 产业 | ||

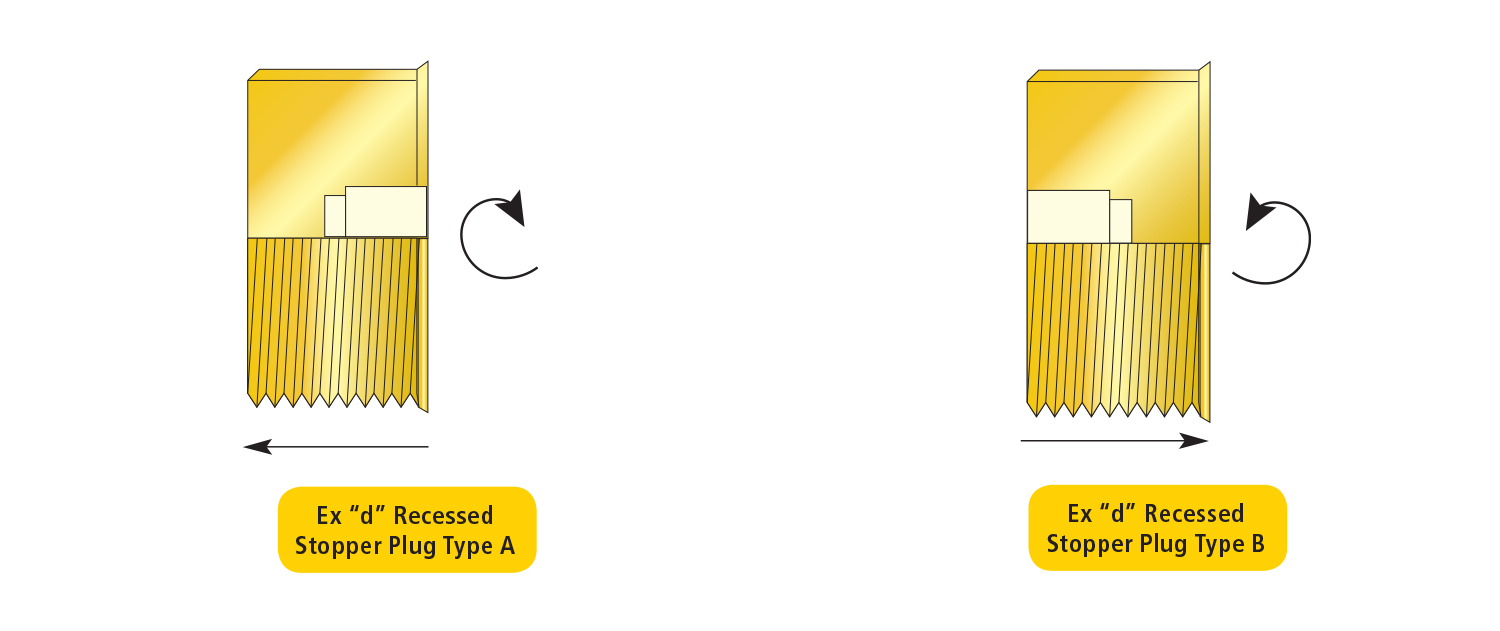

747 Recessed Non-Tamper Proof Type 'A' | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
747嵌入式防篡改类型'B' | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
757 Hexagon Head | ✗ | ✓ | ✓ | ✓ | ✓ | ✓ |
757 Hexagon Head c/w 'O' ring seal | ✗ | ✓ | ✓ | ✓ | ✓ | ✓ |
767 Dome Head | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
767 Dome Head c/w 'O' ring seal | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
BS 6121:Part 1:1989, IEC 62444, EN 62444 | |
IK10 to IEC 62262 (20 joules) Brass & Stainless Steel Only | |
CML 18atex1320x. | |
II 2G Ex d IIC Gb, Ex e IIC Gb, II 1D Ex ta IIIC Da IM2前IMB,EX E I MB (II 2G Ex e IIC Gb, II 1D Ex ta IIIC Da only on Nylon version) |
|
EN 60079-0,1,7,31 | |
IECEx CML 18.0177X | |
Ex D I MB,EX E MB;EX D IIC GB,EX E IIC GB,EX TA IIIC DA | |
IEC 60079-0,1, 7, 31 | |
1055233 | |
Class I, Groups A, B, C and D; IP66, 67, 68, Enclosure Type 4X; Class II Groups E, F and G; III类 Ex de II, Class I, Zone 1, AEx de II; |
|
C22.2 No. 0,0.5,30,94,CAN / CSA E60079-0,1,7,UL50版11,UL1203 Edition 4, UL 60079-0,1,7 |
|
E214221 |
|
I级,A组,B,C,D;II类e,f,g;III类 | |
UL 1203. | |
Tc ru c-gb.гб05.b00138 | |
14-GA4BO-0247X |
|
P444949 | |
GYJ13.1143X |
|
TÜV12.1333x. | |
0.3866 |
|
LRS:01/00173(E1)那DNV:E-13848那ABS:01-LD234401C / 2-PDA | |
-60°C to +200°C (Metallic), -20°C to +60°C (Nylon) | |
IP66 |
|
黄铜,化学镀镍黄铜,铝,不锈钢,尼龙 |
**Refer toMaintaining a Sealfor further information on Ingress Protection Ratings
Ordering Reference | Thread Size | 最小螺纹长度 | Allan Key Size A/F |
747DAM1 | M16 x 1.5 | 0..591 | M8 |
747DAM2 | M20 x 1.5 | 0..591 | M10 |
747DAM3 | M25 x 1.5 | 0..591 | M10 |
747DAM4 | M32 X 1.5 | 0..591 | M10 |
747DAM5 | M40 X 1.5 | 0..591 | M10 |
747DAM6 | M50 X 1.5 | 0..591 | M10 |
747DAM7 | M63 x 1.5 | 0..591 | M14 |
747DAM8 | M75 x 1.5 | 0..591 | M14 |
747DAM9 | M90 X 2.0 | 0..945 | M14 |
747DAM10 | M100 x 2.0. | 0..945 | M14 |
除非另有说明,否则尺寸以英寸为单位显示 |
Ordering Reference | Thread Size | 最小螺纹长度 | 艾伦键尺寸A / F. |
747DAM1 | M16 x 1.5 | 15.0 | M8 |
747DAM2 | M20 x 1.5 | 15.0 | M10 |
747DAM3 | M25 x 1.5 | 15.0 | M10 |
747DAM4 | M32 X 1.5 | 15.0 | M10 |
747DAM5 | M40 X 1.5 | 15.0 | M10 |
747DAM6 | M50 X 1.5 | 15.0 | M10 |
747DAM7 | M63 x 1.5 | 15.0 | M14 |
747DAM8 | M75 x 1.5 | 15.0 | M14 |
747DAM9 | M90 X 2.0 | 24.0 | M14 |
747DAM10 | M100 x 2.0. | 24.0 | M14 |
除非另有说明,否则以毫米显示尺寸 |
