CMP manufactures a range of push on shrouds which are used to minimise the risk of dirt or foreign substances gathering on the Cable Gland body, and/or point of cable to cable gland interface.

• CMP Standard shrouds are produced in Black PVC.
• CMP Blue/Grey SOLO Low Smoke & Fume (LSF) Halogen Free shrouds are also available.

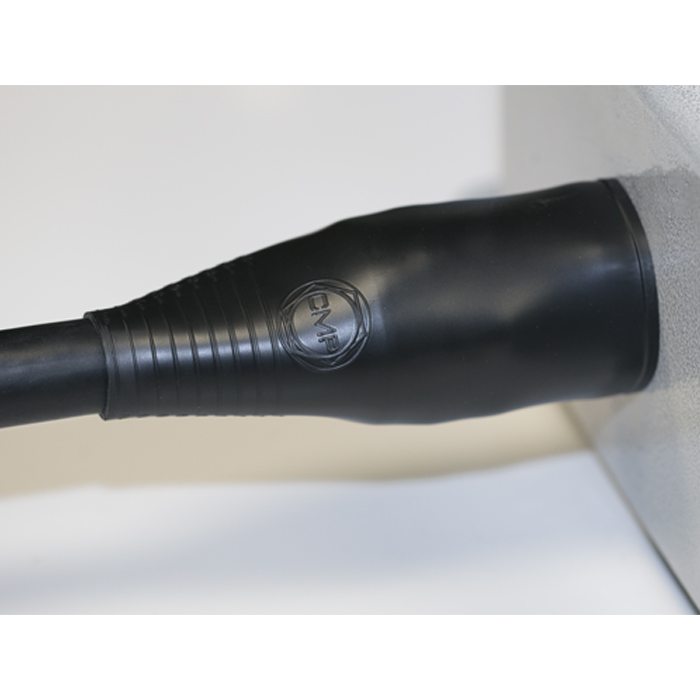

The end of the shroud is a closed-off design with a smooth, continuous finish. The improved design increases stability and ensures a flat surface on the entry-face, providing an improved interface seal with the enclosure or equipment.

The LSF & PVC shrouds are designed with embossed cable diameter ‘cut lines’ for ease of fitting, allowing the installer to pre-cut the shroud to suit their specific cable diameter, providing a tighter fit to the cable outer sheath.

It should be noted that although the addition of a shroud may aid the process of keeping the surface of the cable gland free from the build up of dust or dirt, this does not necessarily improve the Ingress Protection rating of the installed cable gland. Generally cable glands are tested for ingress protection without a shroud being present. In certain conditions the addition of a shroud or other form of external covering may retain unwanted moisture creating a greater threat of penetration than that which it is intended to prevent. In such cases a CMP Deluge Proof cable gland is recommended which negates the need for the use of a shroud and protects the critical migration paths into the interior of the cable gland.

Alternative colours including Red, Blue and White are available to suit a wide variety of customer requirements, other colours are available on request.

Pleaseclick here查看安装说明。另外,a link to the installation video can be found below.

没有输入数据

Watch Installation Video

Shroud Tables

标准腺体 A2 / A2e / A2F RA2E A2RC / A2FRC ZEN BW BWL C2K / C2KGP CW / CWe / CX / CXe CXT E型 PX2K PXRC PXSS2K. PXSS2K.-HC S-TYPE T3CDS / T3CDS-PB TE1FU / TE1FU-PB
大小 Metric n
16 M16 1/2" PVC02 - PVC04 - - - - - - PVC04 - - - - PVC04 - -
20s/16 M20 1/2" PVC04 PVC05 PVC04 - - PVC04 PVC06 PVC04 PVC04 PVC04 PVC06 - PVC06 PVC06 PVC04 PVC36 PVC04
20s M20 1/2" PVC04 PVC05 PVC04 PVC04 PVC02 PVC04 PVC06 PVC04 PVC04 PVC04 PVC06 - PVC06 PVC06 PVC04 PVC36 PVC04
20 M20 1/2" PVC05 PVC05 PVC05 PVC06 PVC05 PVC06 PVC06 PVC06 PVC05 PVC06 PVC06 PVC06 PVC06 PVC06 PVC05 PVC06 PVC06
25s M25 3/4" - - - PVC09 - - PVC09 PVC09 - PVC09 PVC09 - - - - PVC09 PVC09
25 M25 3/4" PVC09 PVC09 PVC09 PVC09 PVC07 PVC09 PVC09 PVC09 PVC09 PVC09 PVC09 PVC09 PVC09 PVC09 PVC09 PVC09 PVC09
32 M32. 1" PVC10 PVC10 PVC10 PVC11 PVC10 PVC11 PVC11 PVC11 PVC10 PVC11 PVC11 PVC10 PVC10 PVC10 PVC10 PVC11 PVC11
40 M40 1-1 / 4“ PVC13 PVC13 PVC13 PVC15 PVC13 PVC15 PVC15 PVC15 PVC13 PVC15 PVC15 PVC13 PVC13 PVC13 PVC13 PVC15 PVC15
50s M50 1-1/2" PVC15 PVC18 PVC15 PVC18 PVC16 PVC18 PVC18 PVC18 PVC15 PVC18 PVC18 PVC15 PVC15 PVC18 PVC15 PVC18 PVC18
50 M50 2" PVC18 PVC18 PVC18 PVC21 PVC19 PVC21 PVC21 PVC21 PVC18 PVC21 PVC21 PVC18 PVC18 PVC18 PVC18 PVC21 PVC21
63s M63. 2" PVC21 PVC23 PVC21 PVC23 PVC23 PVC23 PVC23 PVC23 PVC21 PVC23 PVC23 PVC21 PVC21 PVC21 PVC21 PVC23 PVC23
63 M63. 2-1/2" PVC23 PVC23 PVC23 PVC25 PVC24 PVC25 PVC25 PVC25 PVC23 PVC25 PVC25 PVC23 PVC23 PVC23 PVC23 PVC25 PVC25
75.s M75. 2-1/2" PVC26 PVC26 PVC26 PVC28 PVC27 PVC28 PVC28 PVC28 PVC26 PVC28 PVC28 PVC26 PVC25 PVC25 PVC26 PVC28 PVC28
75. M75. 3" PVC26 PVC27 PVC26 PVC30 PVC29 PVC30 PVC30 PVC30 PVC26 PVC30 PVC30 PVC26 PVC27 PVC27 PVC26 PVC30 PVC30
90. M90 3" PVC31 - PVC31 PVC32 - PVC32 PVC32 PVC32 PVC31 PVC32 PVC32 PVC31 PVC31 - PVC31 PVC32 PVC32
100 M100 4" - - - - - - - - - - - - - - - - -
115 M115 4-1/2" - - - - - - - - - - - - - - - - -
130 M130 5" - - - - - - - - - - - - - - - - -
A2FFC Gland Size 后缀 CMP型A2FFC的罩子 Tc腺体尺寸 Shrouds for CMP Type TC TMC2 Gland Size CMP Type TMC2 / TMC2BC的护罩 TMC2X Gland Size CMP型TMC2x的罩子 TMC Gland Size CMP型TMC / TMCX的护罩
PVC Ref PVC Ref PVC Ref PVC Ref PVC Ref
20 s16 C000. PVC04 TC-050 ​​## 028 PVC05 TMC2-050##075 PVC06 TMC2X-050##075 PVC06 TMC050S## PVC06
20 s16 C001. PVC04 TC-075 ## 028 PVC05 TMC2-075##075 PVC06 TMC2X-050##099 PVC09 TMC050## PVC09
20 s16 C004 PVC04 TC-050##055 PVC06 TMC2-050##099 PVC09 TMC2X-075 ## 075 PVC06 TMC075## PVC10
20 s16 C009 PVC04 TC-075 ## 055 PVC09 TMC2-075##099 PVC09 TMC2X-075 ## 099 PVC09 tmc100 ## PVC13
20 s16 C010 PVC04 TC-075##079 PVC09 TMC2-075##118 PVC11 TMC2X-075##118 PVC11 TMC125## PVC15
20 s16 C020 PVC04 TC-100 ## 079 PVC09 TMC2-100##118 PVC11 TMC2X-100##118 PVC11 TMC150## PVC18
20 s16 C025 PVC04 TC-100##104 PVC11 TMC2-100##137 PVC15 tmc2x-100 ## 137 PVC15 tmc200s ## PVC21
20 s16 C030. PVC04 TC-125##104 PVC11 TMC2-125##137 PVC15 tmc2x-125 ## 137 PVC15 TMC200## PVC23
20S C025 PVC04 tc - 125 # # 127 PVC13 TMC2-125##162 PVC18 tmc2x-125 ## 162 PVC18 TMC250S## PVC25
20S C040 PVC04 TC-150 ## 127 PVC13 TMC2-150##162 PVC18 TMC2X-125##190 PVC37 TMC250## PVC27
20S C045 PVC04 TC-150 ## 150 PVC21 TMC2-125##190 PVC37 TMC2X-150 ## 162 PVC18 TMC300## PVC32
20S C060. PVC04 TC-200##150 PVC21 tmc2 - 150 # # 190 PVC37 TMC2X-150##190 PVC37 TMC350## -
20 C050. PVC05 TC-200##174 PVC21 TMC2-150##200 PVC21 tmc2x-150 ## 200 PVC21 TMC400## -
20 C066. PVC05 TC-250##174 PVC21 TMC2-200##200 PVC21 tmc2x-200 ## 200 PVC21
20 C070. PVC05 TC-200##197 PVC28 TMC2-150##233 PVC23 tmc2x-200 ## 233 PVC23
20 C075. PVC05 TC-250##197 PVC28 TMC2-200##233 PVC23 TMC2X-250##233 PVC28
20 C080 PVC05 TC-250 ## 220 PVC28 TMC2-200##272 PVC28 TMC2X-250##272 PVC28
20 C085 PVC05 TC-300##220 PVC28 TMC2-250##272 PVC28 TMC2X-300##272 PVC31
25 C100. PVC09 TC-250##244 PVC31 TMC2-300##325 PVC32 TMC2X-300##325 PVC32
25 C105 PVC09 TC-300 ## 244 PVC31 TMC2-350##325 PVC32 TMC2X-350##325 PVC32
25 C110. PVC09 TC-300##268 PVC31 tmc2-350 ## 376 - tmc2x - 350 # # 376 -
25 C115. PVC09 TC-350##268 PVC31 TMC2-400##376 - TMC2X-400##376 -
25 C120 PVC09 TC-350##315 - TMC2-400##425 - TMC2X-400##425 -
25 C180. PVC09 TC-400##315 -
32 C250. PVC10 TC-400##354 -
32 C280. PVC10
32 C290. PVC11
40 C300 PVC13
40 C380. PVC13
50S C450 PVC18
50S C500 PVC18
50 C550 PVC18
标准腺体 A2 / A2e / A2F RA2E A2RC / A2FRC ZEN BW BWL C2K / C2KGP CW / CWe / CX / CXe CXT E型 PX2K PXRC PXSS2K. PXSS2K.-HC SS TYPE T3CDS / T3CDS-PB TE1FU / TE1FU-PB
大小 Metric n
16 M16 1/2" LSF.02 - LSF.04 - - - - - - LSF.04 - - - - LSF.04 - -
20s/16 M20 1/2" LSF.04 LSF.05 LSF.04 - - LSF.04 LSF.06 LSF.04 LSF.04 LSF.04 LSF.06 - LSF.06 LSF.06 LSF.04 LSF.36 LSF.04
20s M20 1/2" LSF.04 LSF.05 LSF.04 LSF.04 LSF.02 LSF.04 LSF.06 LSF.04 LSF.04 LSF.04 LSF.06 - LSF.06 LSF.06 LSF.04 LSF.36 LSF.04
20 M20 1/2" LSF.05 LSF.05 LSF.05 LSF.06 LSF.05 LSF.06 LSF.06 LSF.06 LSF.05 LSF.06 LSF.06 LSF.06 LSF.06 LSF.06 LSF.05 LSF.06 LSF.06
25s M25 3/4" - - - LSF.09 - - LSF.09 LSF.09 - LSF.09 LSF.09 - - - - LSF.09 LSF.09
25 M25 3/4" LSF.09 LSF.09 LSF.09 LSF.09 LSF.07 LSF.09 LSF.09 LSF.09 LSF.09 LSF.09 LSF.09 LSF.09 LSF.09 LSF.09 LSF.09 LSF.09 LSF.09
32 M32. 1" LSF.10 LSF.10 LSF.10 LSF.11 LSF.10 LSF.11 LSF.11 LSF.11 LSF.10 LSF.11 LSF.11 LSF.10 LSF.10 LSF.10 LSF.10 LSF.11 LSF.11
40 M40 1-1 / 4“ LSF.13 LSF.13 LSF.13 LSF.15 LSF.13 LSF.15 LSF.15 LSF.15 LSF.13 LSF.15 LSF.15 LSF.13 LSF.13 LSF.13 LSF.13 LSF.15 LSF.15
50s M50 1-1/2" LSF.15 LSF.18 LSF.15 LSF.18 LSF.16 LSF.18 LSF.18 LSF.18 LSF.15 LSF.18 LSF.18 LSF.15 LSF.15 LSF.18 LSF.15 LSF.18 LSF.18
50 M50 2" LSF.18 LSF.18 LSF.18 LSF.21 LSF.19 LSF.21 LSF.21 LSF.21 LSF.18 LSF.21 LSF.21 LSF.18 LSF.18 LSF.18 LSF.18 LSF.21 LSF.21
63s M63. 2" LSF.21 LSF.23 LSF.21 LSF.23 LSF.23 LSF.23 LSF.23 LSF.23 LSF.21 LSF.23 LSF.23 LSF.21 LSF.21 LSF.21 LSF.21 LSF.23 LSF.23
63 M63. 2-1/2" LSF.23 LSF.23 LSF.23 LSF.25 LSF.24 LSF.25 LSF.25 LSF.25 LSF.23 LSF.25 LSF.25 LSF.23 LSF.23 LSF.23 LSF.23 LSF.25 LSF.25
75.s M75. 2-1/2" LSF.26 LSF.26 LSF.26 LSF.28 LSF.27 LSF.28 LSF.28 LSF.28 LSF.26 LSF.28 LSF.28 LSF.26 LSF.25 LSF.25 LSF.26 LSF.28 LSF.28
75. M75. 3" LSF.26 LSF.27 LSF.26 LSF.30 LSF.29 LSF.30 LSF.30 LSF.30 LSF.26 LSF.30 LSF.30 LSF.26 LSF.27 LSF.27 LSF.26 LSF.30 LSF.30
90. M90 3" LSF.31 - LSF.31 LSF.32 - LSF.32 LSF.32 LSF.32 LSF.31 LSF.32 LSF.32 LSF.31 LSF.31 - LSF.31 LSF.32 LSF.32
100 M100 4" LSF.33 - - - - - LSF.33 LSF.33 LSF.33 LSF.33 LSF.33 - LSF.33 - LSF.33 LSF.33 LSF.33
115 M115 4-1/2" LSF.34 - - - - - LSF.34 LSF.34 LSF.34 LSF.34 - - - - LSF.34 LSF.34 LSF.34
130 M130 5" LSF.35 - - - - - LSF.35 LSF.35 LSF.35 LSF.35 - - - - LSF.35 LSF.35 LSF.35
A2FFC Gland Size 后缀 CMP型A2FFC的罩子 Tc腺体尺寸 Shrouds for CMP Type TC TMC2 Gland Size CMP Type TMC2 / TMC2BC的护罩 TMC2X Gland Size CMP型TMC2x的罩子 TMC Gland Size CMP型TMC / TMCX的护罩
LSF.Ref LSF.Ref LSF.Ref LSF.Ref LSF.Ref
20 s16 C000. LSF.04 TC-050 ​​## 028 LSF.05 TMC2-050##075 LSF.06 TMC2X-050##075 LSF.06 TMC050S## LSF.06
20 s16 C001. LSF.04 TC-075 ## 028 LSF.05 TMC2-075##075 LSF.06 TMC2X-050##099 LSF.09 TMC050## LSF.09
20 s16 C004 LSF.04 TC-050##055 LSF.06 TMC2-050##099 LSF.09 TMC2X-075 ## 075 LSF.06 TMC075## LSF.10
20 s16 C009 LSF.04 TC-075 ## 055 LSF.09 TMC2-075##099 LSF.09 TMC2X-075 ## 099 LSF.09 tmc100 ## LSF.13
20 s16 C010 LSF.04 TC-075##079 LSF.09 TMC2-075##118 LSF.11 TMC2X-075##118 LSF.11 TMC125## LSF.15
20 s16 C020 LSF.04 TC-100 ## 079 LSF.09 TMC2-100##118 LSF.11 TMC2X-100##118 LSF.11 TMC150## LSF.18
20 s16 C025 LSF.04 TC-100##104 LSF.11 TMC2-100##137 LSF.15 tmc2x-100 ## 137 LSF.15 tmc200s ## LSF.21
20 s16 C030. LSF.04 TC-125##104 LSF.11 TMC2-125##137 LSF.15 tmc2x-125 ## 137 LSF.15 TMC200## LSF.23
20S C025 LSF.04 tc - 125 # # 127 LSF.13 TMC2-125##162 LSF.18 tmc2x-125 ## 162 LSF.18 TMC250S## LSF.25
20S C040 LSF.04 TC-150 ## 127 LSF.13 TMC2-150##162 LSF.18 TMC2X-125##190 LSF.37 TMC250## LSF.27
20S C045 LSF.04 TC-150 ## 150 LSF.21 TMC2-125##190 LSF.37 TMC2X-150 ## 162 LSF.18 TMC300## LSF.32
20S C060. LSF.04 TC-200##150 LSF.21 tmc2 - 150 # # 190 LSF.37 TMC2X-150##190 LSF.37 TMC350## LSF.34
20 C050. LSF.05 TC-200##174 LSF.21 TMC2-150##200 LSF.21 tmc2x-150 ## 200 LSF.21 TMC400## LSF.34
20 C066. LSF.05 TC-250##174 LSF.21 TMC2-200##200 LSF.21 tmc2x-200 ## 200 LSF.21
20 C070. LSF.05 TC-200##197 LSF.28 TMC2-150##233 LSF.23 tmc2x-200 ## 233 LSF.23
20 C075. LSF.05 TC-250##197 LSF.28 TMC2-200##233 LSF.23 TMC2X-250##233 LSF.28
20 C080 LSF.05 TC-250 ## 220 LSF.28 TMC2-200##272 LSF.28 TMC2X-250##272 LSF.28
20 C085 LSF.05 TC-300##220 LSF.28 TMC2-250##272 LSF.28 TMC2X-300##272 LSF.31
25 C100. LSF.09 TC-250##244 LSF.31 TMC2-300##325 LSF.32 TMC2X-300##325 LSF.32
25 C105 LSF.09 TC-300 ## 244 LSF.31 TMC2-350##325 LSF.32 TMC2X-350##325 LSF.32
25 C110. LSF.09 TC-300##268 LSF.31 tmc2-350 ## 376 LSF.33 tmc2x - 350 # # 376 LSF.33
25 C115. LSF.09 TC-350##268 LSF.31 TMC2-400##376 LSF.33 TMC2X-400##376 LSF.33
25 C120 LSF.09 TC-350##315 LSF.33 TMC2-400##425 LSF.34 TMC2X-400##425 LSF.34
25 C180. LSF.09 TC-400##315 LSF.33
32 C250. LSF.10 TC-400##354 LSF.34
32 C280. LSF.10
32 C290. LSF.11
40 C300 LSF.13
40 C380. LSF.13
50S C450 LSF.18
50S C500 LSF.18
50 C550 LSF.18
